ESL Refresh Reit na Displei Pefomens

Bikpela samting i pasim rot

Ol 'Electronic Shelf Labels' i wok aninit long wanpela 'physical constraction' we maski ol i mekim wok maketing i no inap haitim:ol 'electrophoretic particles' i save muv insait long 'viscous fluid', na 'viscous fluid' i save sakim muvmen. Nogat wanpela sofwet apdet bai stretim dispela.

Refresh reit bilong wanpela ESL-planti taim300ms i go long 2000msbilong wanpela ful skrin apdet-i kamap stret long taim we i nidim long ol 'charged titanium dioxide' na 'carbon black particles' i ken i go insait long 'hydrocarbon solvent' aninit long wanpela 'electric field'. Ol liklik hap samting i bungim ol 'drag forces' (Stokes i pulim, sapos yu laikim teknikel tok, matematiks bihain long en i no bikpela samting olsem praktikel ifek: ol liklik hap i save go daun insait long tikpela wara). Ol i save wok wantaim ol liklik samting i stap klostu long rot bilong 'electrostatic'. Ol i save pas long ol wol bilong kapsul bihain long ol i malolo longpela taim.

Olgeta milisekon bilong taim bilong 'refresh' i soim ol samting i kamap insait long planti milion 'microcapsules' long wankain taim. Ol lain husat i kam long LCD o OLED bekgraun i mas lusim dispela tingting model olgeta. Dispela i no ol displei we i save "skenim" ol piksel wantaim ol 'electron'. Dispela em ol 'electrochemical' sistem we i save senisim ol samting.

Driving Waveforms: We Enjiniaring i bungim Elektrokemistri

Dispeladraivim wevfomem i hap we ol wok bilong stretim ol samting i save kamap bikpela tru. Em i wanpela 'voltage-time sequence we i mas inapim 4-pela wok wantaim: rausim piksa bilong bipo, kirapim ol 'sluggish particles', kamapim wanpela 'reference grayscale', na raitim nupela piksa-olgeta samting na daunim pawa konsumsen, ol 'ghosting artifacts', na 'total refresh duration'.

Rausimi kam pastaim. Displei i save draivim olgeta piksel i go long wankain 'optical state', planti taim em i waitpela. Bilong wanem yu wari? Long wanem, ol EPD patikel i save soim pasin we i dipen long rot. Wanpela piksel i senis long blak i go long grei i bihainim narapela rot winim wanpela i senis long wait i go long grei. Dispela i kamap ples klia long taim bilong ol 'deployment' pastaim taim ol kastoma i komplen long 'grayscale rendering' we i no wankain. 'Erasure' i save fosim olgeta 'pixels' long wanpela 'stating point', na dispela i save rausim ol samting we i bin kamap pastaim.

Aktivesenbihainim-hai-frikwensi senis voltej (±15V long 50-100Hz) we i save senisim ol liklik samting namel long ol 'optical extremes'. Dispela proses i save seksekim ol 'loose particles' we i bin kamap gutpela. Ol liklik hap we i stap isi i save kamapim moa 'surface adhesion' long ol wol bilong kapsul na ol liklik hap samting i stap klostu. Testing i soim gutpela taim bilong kirapim wok long rot bilong skelim 'inflection point' bilong 'brightness-' na '-'taim kev-em taim stret we 'particle mobility' i kamap long mak bilong 'responsiveness'. Go sotpela na ol liklik hap samting i no strong tumas bai stap bihain. Go longpela taim na pawa bai lus nating.

Bihain em i kam'reference grayscale establishment'. Displei i kamapim wanpela wankain waitpela refrens stet bikos EPD greiskel ekyuresi i dipen tru long stat long wanpela optikal beslain we ol i save long en. Tru tumas, putim sotpela 'zero-voltage interval bihain long dispela hap i mekim 'grayscale consistency' i kamap gutpela moa. Ol liklik hap samting i nidim liklik taim long stap gut pastaim long ol i askim ol long paitim stretpela namel posisen.

Laspela samting,raitim piksa. Ol 'pixel-specific voltes na durations i save draivim ol 'particles' i go long ol ples we ol i laik makim. Wanpela 16-level 'grayscale' i nidim stretpela kontrol bilong 'particle vertical distribution' insait long wanwan 'microcapsule-ol 'particles' long antap i save kamapim waitpela, long daunbilo i save kamapim blakpela, na ol namel posisen i save kamapim ol grei.

Pusim i go long 300ms

Ol ESL sistem inap long go hariap olsem wanem? Agresif weivfom optimaisesen i soim180ms daunimlong taim bilong kirapim wok na120ms dauniminsait long 'reference greyscale phase'. Ol dispela winmani i kam long sampela teknik we ol i bin stretim long planti taim bilong putim ol samting.

Infleksen poin analisisi larim wok bilong sekim 'real-taim 'optical response' na i no yusim ol 'fixed activation times'.Daunim 'polarity switching'em i bikpela samting bikos sapos yu senisim 'voltage polarity' dispela i save kamapim ol 'current spikes' na i save westim ol wok bilong 'sequencing' long daunim ol dispela senis. Nastratejik insersen bilong 0V intaveli yusim 'particle momentum', na larim ol i go het long raun na i no nidim pawa ekspendis.

Minimum bilong tingting bilong ol EPD materiel bilong nau i luk olsem200msbilong kisim gutpela piksa kwaliti. Sampela panel i bin go antap long 180ms insait long ol kondisen we ol i bin bosim, tasol ol i luksave olsem kwaliti bilong ol i bagarap. Long brukim dispela banis bai nidim ol nupela samting long wokim ol samting, na i no save long ol 'waveform'.

Refresh Modes: The Speed-Quality-Ghosting Trilemma

Olgeta ESL 'refresh' i gat tripela '-wei 'tradeoff' we yu no inap abrusim. Nogat wanpela enjiniaring inap long ranawe long en; wanpela i ken makim tasol wanem ol kompromis em i laik kisim. Ekspiriens bilong yusim ol samting long ol stua, ol samting bilong elektronik, na ol stua bilong famasi i kamapim ol strongpela tingting long wanem taim long yusim olgeta wan wan 'mode'.

Global Refresh (GC16 Mode)

Dispela em i ful reset-750-2000msbilong blak-wait-blakpela lait we i fosim olgeta liklik samting long go insait long olgeta 'migration cycles'. Em i luk olsem em i narakain tru, sampela taim ol kastoma i save askim sapos ol 'label' i no wok gut, tasol em i wanpela rot tasol we i save rausim ol 'positional errors' we i stap.

Global refresh em i bikpela samting bihain long ol i mekim ol 'partial refresh sequences', taim yu soim ol piksa we i gat bikpela -fidelity, o taim 'ghosting' i kamap nogut tru. Wanpela 'grocery chain' i bin sakim dispela "'ugly flashing'" na traim long mekim ol 'partial updates' tasol. Tripela wik bihain, ol 'promotional label' bilong ol i no inap long ritim. Nau ol i save ranim 'global refresh' long olgeta nait long taim bilong wok.

Hap Refres

'Partial refresh' i save apdetim ol piksel tasol we i no wankain namel long ol freim, na pinisim long250-500ms. Taim sevings i bikpela tru-ol skelim i soim70% pawa ridaksenlong ol prais apdet-tasol i gat wanpela senis i stap.

Ol piksel we i no senis i no kisim 'driving voltage'. Ol liklik hap bilong ol i save sindaun isi isi na kamap ol gutpela konfigurasen. Stable i krai gut inap long taim man i luksave olsem stable i min tu olsem i no inap muv. Bihain long 5-10 hap taim bilong 'refresh', ol 'ghosting artifacts' i kamap ples klia. Dispela mak i save senis long wanwan kampani; sampela panel i save karim 15-pela saikel, na sampela i soim hevi bihain long 6-pela. Wanpela gutpela rot tasol em i 'disciplined periodic global refresh interspersion'.

Fast Refresh (DU Mode)

Dairekt Apdet modi lusim olgeta 'grayscale' inap. Olgeta piksel em i 'binary-blak o wait, nogat wanpela samting namel long tupela. Dispela i mekim120-250msol apdet wantaim wanpela 'flash' tasol, tasol ol arere bilong teks i luk olsem 'alias' na ol piksa i no inap kamap.

Long ol prais-tasol ESL aplikesen we i soim ol namba leta, DU mode i save makim gutpela hap. Wanpela 'side-by-sait tes long wanpela 'consumer electronics store' i soim olsem ol kastoma i no inap long luksave long ol prais bilong DU- na ol prais bilong GC16 long ol nomol lukluk longwe. Ol pawa sevings i bin bikpela tru.

A2 Animesen Mod

Long80-120ms, A2 mode i go klostu long ol 'video-' inap long 'refresh rates'. Ol i bin yusim long ol 'product demo' na ol 'interactive kiosk' aplikesen.

Tasol ol hevi i bikpela tru. Ghosting i save bungim hariap. Kontras i go daun. Ol liklik samting i save lus bihain long sampela taim. Wanpela klaien i laikim ol 'animeted promotional content' long ol 'shelf labels-teknikel inap long yusim A2, tasol piksa kwaliti i go daun bihain long 30 seken i mekim em i no inap long mekim. Dispela mode i stap bilong pen input na sotpela demonstresen, i no bilong prodaksen ESL diploimen.

Yu mas makim stretpela rot

Hau long kisim? Tru tumas, kain konten i save makim yu yet. Ol piksa bilong poto i nidim GC16; ol namba bilong prais i ken yusim DU. Frekwensi bilong apdet i save senisim balens-ol apdet i no save kamap planti taim i save helpim kwaliti, ol apdet i save kamap planti taim i save helpim spit. Na maski wanem kain 'primary mode', 'global refresh' i mas kamap long ol taim stret. I no gat rot bilong ranawe long hevi bilong 'ghosting accumulation'.

Soim ol pefomens parameta

Kontras Resio

EPD kontras resio i save stat long8:1 i go inap 15:15., wantaim ol premium panel i go inap long20:1. Sapos yu skelim wantaim ol spesifikasen bilong LCD (1000:1+) dispela i no stret.

Ol i save skelim EPD kontras aninit long lait bilong ples-ol kondisen we ol kastoma i save ritim ol 'shelf label'. LCD kontras i pundaun aninit long bikpela lait; EPD kontras i kamap gutpela. Ol skelim bilong ESL ridabiliti insait long ol stua we i gat 800+ 'lux' lait antap long het i soim olsem ol LCD skrin i stap klostu i waswas olgeta.

Ol 'barcode scanner' i nidim sampela hap klostu6:1 kontrasbilong ritim gut-mipela i bin traim dispela long planti skena model. Olgeta komesel ESL we mipela i bin skelim i save kliarim dispela 'bar' isi tru, we i min olsem ol 'laser scanner' inap long ritim ol 'barcode' stret long ilektronik displei na i no gat hevi.

Resolusen na Piksel Densiti

ESL piksel densiti (100-150 DPI) i soim wanpela gutpela disisen bilong enjiniaring, na i no wanpela hevi bilong teknoloji. Gutpela resolusen i nidim moa piksel, wanwan i nidim wanwan draiving-inkrisim taim bilong 'refresh', pawa konsumsen, na komponen kos.

Sampela klaien i bin askim long 200+ DPI soim. Taim ol i askim ol long longwe bilong lukluk, bekim bilong ol i save stap antap long 50cm. Long dispela longwe, 100 DPI i givim gutpela rait long ritim. Sapos yu makim tumas 'resolution' dispela i save westim ol risos na i no gat gutpela samting i kamap.

Kala Kapabiliti

Standet blak-na-wait ESLi stap yet olsem wok: spitpela 'refresh' (300ms), liklik pawa, bikpela 'reliability'. Em i save lukautim gut 90% bilong ol aplikesen bilong soim prais.

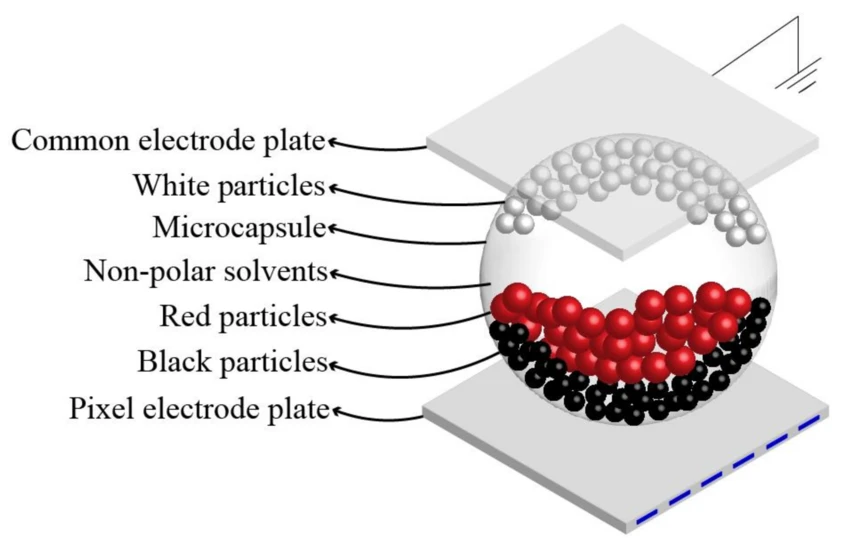

Fopela-kala sistemyusim E Ink Spectra 3100 teknoloji long mekim blak/wait/ret/yelo soim long wankain taim. Em i gutpela long ol kala bilong 'brand-spesifik aksen, tasol taim bilong 'refresh' i go moa.

Ful-kala panelyusim ACeP Gallery teknoloji inap long kamapim ol piksa. Cyan-magenta-yelo-waitpela liklik hap sistem em i gutpela tru-ol poto bilong prodak we i stap long ol dispela panel ol i save ting olsem ol i bin prinim. Tasol1500ms+ taim bilong 'refresh'na bikpela kos i pasim aplikesen long ol 'premium use cases' we 'visual impact' i mekim na ol i mas tromoi bikpela pe.

Taim yumi toktok long kala, askim i stap oltaim sapos ekstra infomesen veliu i stret long taim, pawa, na yunit kos bilong 'refresh'. Nainpela taim long olgeta 10-pela, monokrom i save mekim wok.

Ghosting: The Persistent Artifact

Ghosting em i no wanpela hevi we yumi mas rausim. Em i wanpela samting we i stap insait long 'electrophoretic' teknoloji we i nidim menesmen.Husat manmeri i tok promis long mekim wok bilong EPD we i no gat 'ghost-free' em i wok long giamanim teknoloji o salim ol panel we i save kamap isi isi inap long haitim hevi.

Ghosting i kam we

Tripela rot i save helpim.Inkomplit patikel maigresen-ol liklik hap samting i no inap long kamap long ol ples we ol i laik kisim bikos long taim bilong draiv o voltej i no inap.Distribusen bilong 'residual charge'-i no wankain 'charge' i bung long ol wol bilong 'capsule' na dispela i mekim na ol liklik samting i muv bihain. Na'particle adhesion hysteresis'-ol liklik hap we i stap isi na i kamapim bikpela 'surface adhesion'.

Planti taim i bin lus long painimaut pasin bilong ol 'ghosting' long ol narapela narapela kampani i wokim ol panel. Ol senis i bikpela samting; sampela panel i save kamap ples klia bihain long 5-pela hap apdet na sampela i save larim 12-15 apdet.

Ol samting bilong envairomen i mekim em i kamap nogut moa

Tempritsaem i bikpela samting tru. Solvent viskositi i save go antap long liklik tempereja, na dispela i save pasim ol liklik samting long muv na i save mekim 'ghosting' i go bikpela moa. Aninit long 10 digri, taim bilong 'refresh' i mas go moa o ol samting yu ken lukim i mas kisim. Aninit long 0 digri, ol standet panel i kamap hevi-ol displei i no inap long ritim olgeta i bin kamap long ol 'refrigerated case' we ol i yusim ol panel we i no gat mak bilong wok long kol.

Voltej bilong baterii save bagarapim 'ghosting' tu. Ol bateri we i pinis i save givim liklik 'driving voltage', na dispela i save mekim ol liklik samting i no ron gut. Wanpela famasi klaien i bin bungim ol hevi bilong 'ghosting' we i kamap olsem ol bateri bilong ol 'label' i no wok gut. Ol ESL sistem i mas yusim 'low-battery detection wantaim ol 'preemptive maintenance alert'.

Rifresim historii save bungim olgeta samting. Wanpela piksel we i soim wankain samting planti taim i save kamapim ol 'particle configurations' we i save stap oltaim. Statik konten i save go hariap moa long dainamik konten-i no stret inap long taim ol i kliagut long 'adhesion mechanism'.

Menesim Ghosting long Praktis

Oltaim global refreshi stap yet olsem namba wan samting bilong daunim hevi. Ol i save tok olsem ol i mas mekim 'full-screen refresh bihain long olgeta 5-10 hap apdet, tasol gutpela taim bilong en i save senis bihainim ol panel na opereting kondisen.

Ol tebol bilong lukluk long tempereja-helpim long ol kain kain ples. Ol 'driving parameters' we i stap insait long ol LUT we i gat 'index' long 'temperature' i save skruim taim bilong 'waveform' long taim bilong 'low temperature'. Ol skelim i soim40% daunim bilong 'ghosting'yusim gutpela -temperature kompensesen na ol fiks paramita.

Historikal freim kompensesenem i moa sofistiketed-long stretim ol 'current driving waveforms' bihainim 'pixel-level 'refresh history' bilong stretim ol 'accumulated positional bias'. I no olgeta ESL kontrola i sapotim dispela, tasol em i mekim bikpela senis long ol panel we i bin stap long sevis inap planti mun.

Konten disainem i bikpela samting tu. Ol waitpela bekgraun wantaim blakpela teks i no save kamapim planti 'ghosting' olsem ol 'inverse color schemes'. Ol ESL templet i mas kamap wantaim tingting long ol pasin bilong 'ghosting-no ken putim ol bikpela blakpela hap we bai i gat 'ghosting', laikim ol waitpela bekgraun.

Sistem-Level Refresh Pefomens

Taim bilong 'refresh' wanwan ESL em i wanpela hap tasol bilong 'system update latency'. Long ol wok we i gat planti tausen 'label', 'network architecture' i save bosim olgeta taim bilong apdet. Sampela klaien i tingting planti long 50ms panel refresh impruvmen na ol i no tingim ol netwok botelnek we i save putim 30 seken long ol apdet saikel bilong ol.

Ol Komyunikesen Protokol

Ol 'proprietary sub-1GHz RF' sistemgivim bikpela 'coverage area' na 'building penetration'. Gateway-to-label komunikesen ranj i winim 25 mita, we i bikpela samting long ol bikpela-fotprin ritel envairomen. Ol hevi bilong 'bandwidth' i pasim wok bilong apdet long wankain taim, tasol long ol 'retail update patterns' dispela i no save kamap olsem wanpela hevi.

Bluetooth Low Energy wantaim PAwR(Periodic Advertising with Responses, added in BLE 5.4) i mekim na ol i ken toktok long tupela rot wantaim bikpela namba bilong ol divais. Wanpela 'access point' tasol inap long stretim32,640 lebol-128 grup taims 255 lebol long wan wan grup. Taim bilong edvetaismen i save makim 'system latency'; ol sotpela taim i save givim hariap bekim long bikpela pawa kos. Ol i bin putim ol BLE sistem wantaim 1-sekon intavel bilong ol aplikesen we i save pilim taim na 10-sekon intavel bilong ol 'routine price updates'.

Netwok topolojibihainim wanpela sta paten wantaim ol 'centralized gateways'. Wanwan 'gateway' i karamapim wanpela 'zone'; 'overlapping coverage' i save mekim 'redundancy' i kamap. Ol bikpela ritel diploimen i nidim gutpela RF senel plening-wanpela diploimen we tupela 'gateway' long ol 'channel' i stap klostu i kamapim ol 'interference patterns' na i mekim 15% paket lus.

Real-Wol Throughput

Insait long ol prodaksen sistem,3,000 'label' apdet insait long 5-pela minitlong rot bilong wanpela 'gateway' em inap long kamap oltaim. Pinisim-long-pinisim 'latency' long 'server' komand long soim ol 'complition runs'3-10 sekeni dipen long netwok lod na ol samting yu mas traim gen.

Bikpela luksave long ekspiriens bilong diploimen: long ol kain kain ritel apdet senario we prais senis i save go long planti tausen lebol, sistem-level netwok pefomens i save pasim olgeta apdet taim na i no spit bilong wanwan lebol. Sapos yu stretim ol wanwan 'refresh rate' aninit long 500ms dispela i save givim liklik winmani taim wok bilong 'network' i nidim sampela seken.

Pawa Konsumsen na Bateri Laip

EPD pawa konsumsen i save kamap klostu tasol long taim bilong 'refresh' iven. Standby current em i liklik tru-ol i bin skelim ol 'microamperes'. Dispela profail i mekimplanti-yia laip bilong baterilong ol koin sel, we i stap yet olsem wanpela strongpela tok bilong EPD-bes ESL.

Wanem samting i save kisim pawa

Namba bilong ol pikseli gat wanpela 'linear' rilesensip-ol bikpela displei i save kisim moa samting.Greiskel dipem i bikpela samting bikos 16-level GC16 i nidim moa kompleks weivfom winim 'binary DU mode'.Refresh mode selekseni gat bikpela impak; 'global refresh' i save yusim 2-3× pawa bilong 'partial refresh'. Natempritsai save bagarapim pawa dro bikos ol ples we i kol i nidim ol longpela wevfom.

Laip bilong Bateri long Praktis

BilongCR2450 litiam koin selwantaim samting olsem 600mAh kapasiti, wok bilong ol i olsem:

Ol dispela projeksen i ting olsem rum tempereja i wok. Ol 'cold storage' aplikesen-ol seksen we i stap long aisbokis na ais-i save kisim hariap 'battery drain' bikos pawa bilong 'refresh' i go antap na 'battery capacity' i go daun taim ples i no hat tumas. Wanpela 'label' we i gat mak bilong 5-pela yia long rum tempereja inap long stap 2-pela yia insait long wanpela bokis we i stap long aisbokis.

Olgeta 'refresh' i save kisim liklik hap bilong bateri. Wanpela klaien i laikim ol 'animeted prais promosen' we i wok long ron oltaim-ol bateri i stap inap long tripela wik. Ol sistem akitek i mas makim ol 'update frequency' rikwaemen pastaim long ol i makim 'hardware'. Wanpela 'label' we i nidim ol 'update' long olgeta aua i nidim narapela 'battery architecture' winim wanpela 'label' we ol i save 'update' long olgeta de.

Tempereja Ifekt long Pefomens

Tempereja i save senisim wok bilong ESL long planti rot, na dispela i mekim em iwanpela bikpela samting tru long envairomen. Dispela i bin kamap planti taim long ol 'deployment' insait long ol 'climate-controlled retail floors', ol 'refrigerated cases', ol 'frozen food sections', na ol 'outdoor' aplikesen.

Solvent Viskositi

Dispela i go insait long sampela kemistri, tasol sotpela tok: EPD solvent i save kamap tik taim em i kol. Dispela rilesensip i bihainim wanpelaArrhenius curve-na noken go insait tumas long 'thermodynamics', wanem samting i bikpela samting em olsem dispela samting i kamap em i 'exponential', i no 'linear'.

Long25 digri(refrens kondisen), ol liklik hap samting i soim liklik muvmen. Long0 digri, 'viscosity' i go antap inap tupela taim, na i daunim 'particle velocity'. Long-20 digri, 'viscosity' i go antap klostu 4×, na i nidim ol 'waveform durations' we i go longpela moa. Matematik i save toksave gut long dispela, tasol ol risal bilong wol i save senis sampela taim bihainim wanem kain 'solvent' fomulasen we wanwan kampani i yusim.

Taim ol i testim wanpela kampani i tok "bikpela tempereja" long rot bilong ranim ol panel bilong ol long -15 digri, ol i soim olsem taim bilong 'refresh' i go antap long 400ms i go inap long 1100ms. Ol panel i wok, tasol ol spesifikasen i soim olsem ol i wok gut moa long taim bilong kol.

Ol Klasifikesen bilong Opereting Renj

Ol standet panelkaramapim 0 digri i go inap 40 digri wantaim beslain pefomens.Ol panel we i gat bikpela makholim -10 digri i go inap 50 digri wantaim liklik wevfom kompensesen.Ol bikpela tempereja panel-i mas i stap long ol frisa kes-i wok long -25 digri i go inap 60 digri yusim ol spesel fran-plen laminet materiel, integreted tempereja sensing, na adaptiv weivfom seleksen. TRUfriza-greid panelol i stretim long -30 digri i go inap 10 digri i stap tasol i gat gutpela prais.

Tempereja Kompensesen

Wide-temperature ESL i gat ol 'on-chip temperature sensors, planti 'waveform parameter set' we i stap insait long memori, na otomatik paramita seleksen bihainim temperaja we ol i skelim. Longpela taim bilong 'waveform' bilong wok long kol na daunim 'voltage swing' bilong wok long taim bilong kol.

Pefomens penalty bilong wide-temperature operesen em i no liklik samting. Ol skelim i soim ol taim bilong 'refresh' long taim bilong hat trudabol i go long tripelarum-temperature pefomens. Ol klaien we i wok long ol 'refrigerated environment' i mas tingim dispela insait long ol 'update timing' kalkulesen bilong ol.

We ol ESL rikwaemen i no wankain NUPELA SEKSEN

Jenerik "retail ESL" spesifikasen i karamapim ating 60% bilong ol 'real-world diploimen. Narapela 40% i gat ol spesel rikwaemen we i save kamap tasol taim ol i glasim ol spesifik vertikal maket. Samting we i wok gut insait long wanpela stua bilong ol samting bilong yusim i no wok gut tru insait long wanpela haus bilong putim ol kaikai we i ais pinis. Ol seksen i kam bihain i raitim ol ekspiriens bilong diploimen long olgeta indastri we ol standet ESL asumsen i bruk daun.

Fres Kaikai na Groseri: Dainamik Prais i bungim ol samting we i save bagarap hariap

Fres kaikai ritel i makim ESL aplikesen we i gat bikpela wok long en bikos long wanpela as tasol: pe bilong prodak i save go daun oltaim taim ol i soim. Wanpela mit we i gat pe bilong $15/lb long Mande moning bai i gat pe bilong $7/lb long Sarere apinun sapos em i no salim yet. Ol pepa lebol bilong bipo i no inap long kisim dispela 'value curve'. ESL inap-tasol ol samting bilong kamapim i narapela kain tru long prais bilong ol stua.

Dainamik makdaun praisi nidim ol apdet frikwensi we bai pinisim ol standet ESL bateri insait long sampela mun. Wanpela fres kaikai dipatmen i save ranim 4-pela prais apdet long olgeta de-moning stok, stretim long namel de, apinun makdaun, ova nait reset-i save yusim bateri long 4× mak bilong wanpela senta-stoa lebol we ol i save apdetim wanpela taim long olgeta wik. Bateri kemistri seleksen i senis long ol standet CR2450 koin sel i go long ol haia-kapasiti litiam thionil kloraid sel o ol opsen we ol i ken sasim gen wantaim ol induktiv sasing stesin we ol i wokim insait long ol sel.

Deit bilong pinis bilong wok i soimi putim ol samting we i mas i gat planti infomesen. Wanpela simpol prais tag i nidim ating 50 leta. Wanpela 'fresh food label' we i soim prais, yunit prais, deit bilong putim, salim-long deit, na yusim-long deit i nidim 150+ leta long ol font sais we yu ken ritim. Displei ril estet i go antap bihainim dispela-2.9" na 4.2" lebol i kamap standet we 2.13" i inap long senta stua.

Wanpela 'grocery chain' fres sifud dipatmen i putim 4.2" tripela-kala ESL wantaim integreted NFC bilong toktok wantaim ol kastoma long smatfon. Retpela kala i soim ol samting we i laik salim-bai deit wantaim otomatik progresiv makdaun prais: 15% of long 48 aua i stap yet, 30% long 24% long 20 aua. Beken integresen i nidim ril-taim inventori menesmen sistem konektiviti-ESL infrastraksa i kamap olsem hap bilong inventori shrink riduksen sistem na i no wanpela tul bilong putim prais tasol. Shrink ridaksen bilong 23% long pailot dipatmen i bin baim olgeta wok insait long 7-pela mun.

Ol kol kes envairomenkamapim ol hevi bilong temperaja we mipela i bin toktok long en pastaim. Ol 'dairy cooler' we i wok long 4 digri i save mekim 'refresh' i go isi. Ol mit we i stap long 2 digri em i nogut moa. Ol 'frozen food cases' long -18 digri i nidim ol spesel 'wide-temperature panel' we i kost 40-60% moa long ol standet yunit. Wanpela stua bilong salim ol ais kaikai i bin putim ol standet panel long aiskrim seksen bilong ol; ol 'label' i no inap long ritim insait long wanpela wik bikos ol 'ghosting' i kamap bikos ol i no bin stretim gut long 'operating temperature'.

Tempereja gradient insait long ol 'refrigerated cases' i save kamapim moa hevi. Ol sistem bilong 'air curtain' i save kamapim ol senis long tempereja bilong 8-12 digri namel long fran sait (i hat moa, klostu long 'ambient air mixing') na baksait (i kol moa, klostu long 'evaporator'). Ol 'label' long fran bilong wanpela 'dairy case' i ken wok long 8 digri tasol ol 'label' long baksait i ken wok long 2 digri -i narakain inap long nidim narapela kain 'waveform timing'. Ol gutpela wok i save yusim 'per-label temperature sensing' wantaim ol 'individualised refresh parameters'.

Pasin bilong bihainim ol samting we i save bagarapintegresen i makim narapela evolusen. Taim ol ESL sistem i konektim long tupela sait wantaim menesmen bilong ol samting, 'label' i kamap olsem wanpela 'sensor' na tu wanpela 'display'. Stock-out detection-we i luksave taim wanpela shelf i stap nating bikos i no gat wok bilong salim ol samting-i mekim ol otomatik toksave bilong 'replenishment' i kamap. Wanpela prodak dipatmen i daunim aut-bilong-stok insiden long 34% yusim ESL-integreted inventori monitoring we i soim ol posisen we i no gat sels ektiviti long moa long 4-pela aua long taim bilong bikpela wok.

Warehouse na Industrial Logistics: Skel i senisim olgeta samting

Ol indastriel warehaus ESL diploimen i wok aninit long ol hevi we ol ritel sistem akitek i no save bungim planti taim. Wanpela stua i gat 15,000 SKU long 40,000 skwea fit. Wanpela distribusen senta we i save sevim dispela groseri sen i gat 50,000+ SKUs long 500,000 skwea fit wantaim siling hait bilong 40 fit. Ol RF propagasen model we i wok insait long 12-fut-siling ritel envairomen i save bagarap olgeta insait long wanpela haus kago we i gat 'steel racking' i go inap long 35 fit.

Painimaut bilong ples bilong bini nidim ol narapela samting bilong soim olsem ol prais bilong ol stua. Bikpela infomesen em i no prais-em i kod bilong ples, SKU, na namba. Ol 'warehouse ESL templates' i save soim ol 'location identifier' long 48-point o bikpela font we yu ken ritim long 3+ mita, na dispela i larim ol wokman bilong 'forklift' na ol wokman bilong 'pick-pack long luksave long ol ples na ol i no ken go klostu long 'bin'. Ol samting bilong 'contrast ratio' i kamap strong bikos lukluk i kamap aninit long ol kain kain lait bilong indastri-sampela rot aninit long ol 'high-bay fixtures' long 1500+ 'lux', na sampela i stap aninit long 'shadow' long 200 'lux'.

Pikim-long-lait integreseni skruim ESL i go moa long 'passive display' i go insait long 'active workflow guidance'. Ol LED indiketa we i stap wantaim e-pepa displei i save lait long soim ol wokman long makim ol ples. EPD i soim wanem samting yu mas kisim; LED i soim we yu mas kisim. Ol sistem we ol i bungim wantaim i save daunim mak bilong ol 'pick error' long 0.5-1% i go daun long 0.1% o moa yet. Pawa baset i senis-LED indikesen long taim bilong kisim operesen i save yusim moa pawa winim e-pepa refresh saikel. Ol bateri akiteksa i save senis bihainim dispela, planti taim ol i save muv i go long ol AA litiam sel o waya pawa long ol ples we i gat planti wok.

Ol bikpela -bei rak envairomenstres RF komunikesen sistem. Metal racking i save kamapim planti rot bilong pasim rot. Ol longpela rot i save kamapim ol hap we i gat sedo. Wanpela geit we i karamapim 25 mita long ritel i ken karamapim 8-10 mita tasol insait long wanpela bikpela haus kago. Densiti bilong ol 'gateway' i go antap 3-4 taim taim yumi skelim wantaim ol 'retail deployments' bilong kisim wankain 'coverage'. Sampela 'warehouse deployments' i save ranim ol 'hybrid networks-sub-1GHz' bilong go insait long ol 'dense rack' eria, WiFi bilong 'open staging' eria, wantaim 'middleware' we i save bungim 'communication layer'.

Ol mobail displei we ol i putim long 'forklift'i makim wanpela kain ESL bilong haus kago we i wok long kamap. I no ol 'fixed shelf label', ol 'display' i save stap long ol 'forklift masts' na kisim ol instraksen long taim stret bilong kisim ol samting taim ol opereta i raun long haus kago. Ol dispela divais i save apdetim oltaim-ples, namba, neks ples-na i nidim ol pawa akiteksa we i narapela kain long ol 'static shelf label'. Pawa we i kam long pawa bilong 'forklift' em i standet; wok bilong bateri i no inap long ol wok bilong apdet oltaim.

Inventori kaunim otomeseni yusim tupela sait ESL komunikesen. RFID integresen i mekim na ol prodak we i gat RFID i stap long en i ken kaunim otomatik saikel klostu long ol ESL yunit we i gat RFID rida, na ol i save apdetim ol kaun bilong ol samting we i no gat wok long skenim long han. Wanpela distribusen senta diploimen i daunim wok bilong kaunim ol samting long bodi long 60% yusim ESL-integreted RFID saikel kaunim we i holim stretpela bilong ol samting i stap antap long 99%.

Ol mak bilong ol hatpela envairomensamting insait long ol indastrial konteks. IP54 das na splash resistens em i as bilong ESL bilong haus kago; IP65 i kamap olsem samting we i mas i stap insait long ol ples we i gat ol wok bilong klinim wara. Kemikel resistens em i bikpela samting long ol ples we ol i save yusim ol 'solvent' o 'cleaning agents'. Wanpela haus bilong putim ol hap bilong kar i nidim ol 'label' we i no inap long 'brake fluid' na 'transmission fluid exposure'-standet ESL hausing we i bagarap insait long sampela mun. Ol spesel banis wantaim ol kemikel-resisten polycarbonate haus i bin putim 35% long yunit kos tasol i bin kamap olsem em i bikpela samting long mekim wok i stap longpela taim.

Heltke na Famasi: Stretpela bilong en i no inap long toktok long en

Ol 'pharmacy ESL deployments' i save bungim ol 'regulatory requirements' we i no stap long ol 'conventional retail'. Wanpela asua long prais insait long wanpela stua i min olsem ol kastoma i komplen na ol i ken kisim hevi long lo aninit long ol lo bilong stretpela prais. Wanpela rong long putim nem bilong marasin long wanpela famasi inap long mekim sikman i kisim bagarap o dai. Risk profail i save senisim tru ol praioriti bilong sistem disain.

Displei bilong luksave long marasini nidim planti infomesen we i winim 'retail ESL'. Wanpela 'famacy shelf label' i mas soim: nem bilong marasin (brend na jenerik), strong, mak bilong marasin, NDC namba, prais, yunit prais, kampani i wokim, na planti taim ol samting bilong putim. Long putim dispela long wanpela 2.13" lebol i nidim gutpela taipografi-o planti taim, putim 2.9" o bikpela displei. Sampela famasi i save yusim 4.2" lebol wantaim QR kod we i save linkim i go long ful infomesen bilong givim marasin.

Verifikasen bilong stretpela bilong 'barcode'i kamap bikpela samting. Ol wokman bilong famasi i save skenim ol marasin planti taim long taim bilong wokflo bilong givim marasin-kisim, putim long sel, pulim, sekim, givim. ESL-barkod i mas sken stret long olgeta step. Dispela i strongim ol samting bilong 'contrast ratio' i go moa long ol 'retail minimums'. Taim ol i skelim ol masin bilong skenim ol marasin long ol famasi, ol i soim olsem olpela masin bilong skelim marasin-sampela i yusim yet CCD teknoloji na i no ol nupela laser o piksa skena-i nidim 10:1 o gutpela kontras bilong kisim gutpela ritim. Seleksen bilong panel i mas tingim ol 'worst-skening ikwipmen insait long beis we ol i putim.

Ol hap we ol i bosim ol samtingkamapim ol samting bilong sekyuriti. Ol marasin bilong Sediul II-V i nidim gutpela ples bilong putim wantaim 'access logging'. ESL insait long ol 'controled substance cabinets' i mas bung wantaim ol 'cabinet access control systems-we i soim ol 'restricted access indicators', na raitim wanem ol 'label' i stap ples klia long taim ol i opim ol 'cabinet', na dispela inap long pasim soim taim ol i traim long kisim ol samting we i no gat tok orait long en. Wanpela haus sik famasi i bin bungim ESL wantaim 'controlled substance management system' bilong ol long soim ol 'real-time inventory counts we i save apdet otomatik taim ol i givim marasin, na dispela i no inap long stretim ol 'manual count reconciliation'.

Stoa bilong putim marasin long aisbokisi bungim ol samting we ol famasi i mas mekim wantaim ol salens bilong kol-sen tempereja. Ol sut, insulin, na sampela marasin bilong laip i mas stap namel long 2-8 digri. Ol ESL panel we i gat bikpela -temperature em i mas stap. Sampela famasi kol stoa aplikesen i nidim tempereja logging wantaim ESL-integreted sensa we i soim nau tempereja wantaim infomesen bilong marasin-providing visual verifikasen olsem stoa kondisen i stap insait long spesifikesen na i no nidim ol wokman long sekim ol seperet monitoring ikwipmen.

Ol wok bilong haus sik famasiputim ol samting we i hat moa long 'retail pharmacy'. Ol kat bilong kisim marasin, ol 'automated dispensing cabinet', na ol 'satellite pharmacy' ples i gat ol narapela narapela ESL rikwaemen. Cart-mounted ESL i nidim strongpela konstraksen we i ken stap laip taim ol i karim planti taim; ol displei i mas stap gut aninit long ol lait we i save kamap long ol haus sik. Integresen bilong ol 'automated dispensing cabinet' i nidim ol 'communication protocols' we i ken wok wantaim 'cabinet management' sofwet-planti taim ol i save yusim ol 'proprietary' sistem wantaim liklik 'third-integration capabilities.

Ol pepa bilong bihainim ol loi nidim ol 'audit trails' we ol 'retail ESL' sistem i no save givim planti taim. Joint Commission akreditesen bilong ol haus sik famasi i nidim ol pepa bilong stretpela mak bilong ol marasin. Ol ESL menesmen sistem i mas logim olgeta apdet bilong lebol wantaim taimstemp, tok orait bilong yusa, na ol ditel bilong senis bilong konten. Wanpela wok painimaut bilong Join Komisin bilong wanpela haus sik sistem i bin glasim stret ol ESL odit trel bilong ol; man bilong sevim graun i askim long kisim ol pepa bilong ol wok bilong sekim stretpela bilong ol 'label' insait long las 12-pela mun.

Elektronik na Hai-Veliu Ritel: Ril-Taim Kompetitiv Prais

Konsuma ilektroniks ritel i save wok long wanpela maket we prais bilong en i stap ples klia we ol kastoma i save sekim ol prais bilong ol narapela kampani long ol smatfon taim ol i sanap insait long stua. ESL veliu proposisen i senis long sevings bilong wokmanmeri i go long kompetitiv rispons kapabiliti-em inap long winim o winim ol prais bilong ol kompetisen long ril-taim na i no long wetim ol prais fail apdet long nait.

Kompetitiv prais monitoring integreseni konektim ol ESL sistem wantaim ol prais intelijens sevis we i save skrapim ol websait bilong ol kompetisen oltaim. Taim wanpela bikpela kompetisen i daunim prais bilong em long wanpela bikpela smatfon, prais intelijens sevis i save luksave long senis insait long sampela minit tasol, prais ensin i save skelim ol 'margin rules', na ol nupela prais i save go aut long ol 'shelf labels' insait long 3-10 seken netwok latensi windo. Wanpela ilektroniks ritela i daunim prais-driven walkout long 18% bihain long ol i kamapim 'real-time competitive price matching' long rot bilong ESL infrastraksa bilong ol.

Gutpela infomesen bilong prodak i soimi stret long ol bikpela tingting bilong baim ol samting we i save kamap long ol stua bilong salim ol samting bilong elektronik. Wanpela kastoma i baim wanpela laptop long $1,500 i laikim ol spesifikesen-prosesa, memori, stoa, displei resolusen, laip bilong bateri. Bikpela fomat ESL (7.5" na antap) i mekim na ol i ken soim ol spesifikesen we bipo ol i nidim ol 'spec' kad we ol i bin prinim. Sampela ilektroniks ritela i save putim ol kombinesen fiksa wantaim e-pepa bilong putim prais na spesifikesen wantaim ol liklik LCD skrin bilong promosen vidio konten-na yusim strong bilong wanwan teknoloji.

Displei bilong ol samting bilong helpimi yusim ESL long kirapim ol 'attachment sales'. Wanpela displei we i soim "wok wantaim:" infomesen i save linkim ol namba wan prodak i go long ol samting we i ken wok wantaim-kes bilong ol fon, ol kebol bilong ol laptop, ol gem bilong ol konsol. Dynamic attachment pricing i ken givim ol 'bundle discounts' we i stap long 'accessory ESL' taim 'primary product ESL' i soim ol 'inventory levels' we i nidim muvmen.

Anti-stil integreseni kamap gutpela long ol samting we i gat bikpela pe. Ol ESL sistem i ken wok wantaim 'electronic article surveillance' (EAS) na RFID-bes 'inventory tracking'. Taim ol i rausim wanpela EAS tag na ol i no pasim gut, ESL i ken soim wanpela toksave o senisim lukluk bilong en. Ol moa sofistiketed implementesen i save apdetim ol inventori kaun long ril-taim taim ol i rausim ol prodak long ol sekyuriti fiksa, na dispela i mekim na ol i ken luksave long stok-aut hariap.

Prais bilong laipsaiklon bilong prodakbilong ol samting bilong elektronik i bihainim ol pasin we yu ken tingim-lonsim premium prais, kompetitiv mid-laip prais, kliarens end-bilong-laip prais. ESL i mekim ol 'automated lifecycle pricing rules' we i save stretim ol 'margins' bihainim krismas bilong prodak, mak bilong ol samting i stap, na ol sediul bilong lonsing bilong ol narapela prodak. Taim nupela iPhone i kamap, ESL bilong bipo jeneresen i save apdetim otomatik wantaim kliarens prais bihainim ol rul bilong 'margin' we ol i bin makim pinis, na i no gat wok long han.

Demo yunit menesmeninsait long ol samting bilong salim ol samting bilong elektronik i save yusim ol ESL we ol i wokim bilong ol samting bilong soim ol samting. Ol dispela yunit i save bung wantaim ol sekyuriti 'tether', pawa menesmen sistem, na ol 'interactive kiosk'. Displei i ken soim prais taim em i no wok na senis i go long ol bikpela samting taim ol kastoma i toktok wantaim demo prodak. Sampela implementesen i save yusim ol 'proximity sensor' long painimaut sapos kastoma i stap na apdetim ol samting we i soim.

Ol Indastriel Pats na MRO: Longpela-Tel Inventori Salens

Ol distributa bilong mentenens, ripea, na operesen (MRO) na ol saplaia bilong ol indastrial pat i save menesim ol inventori profail we i narakain tru long ol konsuma ritel. Wanpela MRO distributa i save karim 100,000+ SKU wantaim longpela-tel distribusen-20% bilong ol SKU i save kamapim 80% bilong reveniu taim 80% bilong ol SKU i save sindaun wantaim liklik muvmen. Ol pasin bilong putim ol 'label' i no wok gut taim ol kos bilong lukautim 'label' i winim mak bilong prodak bilong ol samting we i no ron hariap.

Bikpela-SKU-kaun ekonomikssenisim ol ESL ROI kalkulesen. Insait long ol stua, ESL pebek i save kamap pastaim long ol wokman i sevim long ol senis long prais. Insait long MRO distribusen, pebek i kam long 'inventory accuracy' i kamap gutpela na daunim 'obsolescence' bilong ol 'slow-stock we i save muv isi. Wanpela 'fastener distributor' i daunim ol 'inventory write-offs' long 31% bihain long ol i putim ESL-integrated inventory tracking we i painimaut olsem ol stok i save muv isi isi long promosen prais pastaim long ol i no wok moa.

Teknikel spesifikesen displeiol samting yu mas mekim i wankain olsem famasi moa long groseri. Ol indastrial pat i nidim soim ol spesifikasen bilong sais, ol mak bilong ol samting, ol setifikesen, na ol infomesen bilong kompatibiliti. ESL bilong wanpela 'bearing distributor' i soim: namba bilong hap, kampani i wokim, 'bore diameter', 'outer diameter', 'width', 'speed rating', 'load rating', na ol samting we i stret long en (ISO, ABEC, na ol narapela). Ol samting we i mas i gat planti infomesen i save subim ol bikpela displei na gutpela 'typographic design'.

Ol sistem bilong putim ol binlong distribusen bilong ol hap planti taim ol i save yusim ol 'proprietary location coding schemes' we ol i bin kamapim long planti yia bilong wok. ESL integresen i mas inapim ol 'legacy location formats' na tu i mas larim ol manmeri i go long 'standardized location coding'. Senis menesmen i kamap bikpela samting olsem teknikel implementesen-ol wokman bilong haus we i save long ol 'location code' we ol i bin yusim inap 20 yia na ol i no laik senis long fomat maski sistem i gat wanem kain strong.

Kastoma- i lukluk i go long ol terminallong ol 'parts counters' i kisim gutpela samting long ESL integresen. Taim wanpela kastoma i askim long kisim wanpela hap, ol wokman bilong kaunta i askim sistem, na ol ESL displei long ples bilong putim ol samting i lait o soim ol instraksen bilong kisim. Sampela ol distributa bilong ol hap i bin kamapim ol wokflo bilong "bring to counter" we ol ESL displei long ol ples bilong bin i soim ol instraksen bilong kisim na nem bilong ol wokman bilong kaunta, na dispela i mekim na ol i ken mekim planti wok wantaim kastoma sevis wantaim klia luksave bilong kisim ol samting.

Wok bilong putim na bungim ol samtingyusim ESL long stiaim seleksen bilong ol komponen bilong ol multi-pat asembli. Wanpela haidrolik sistem kit i ken i gat pam, moto, valv, fiting, hos, na wara-we olgeta wan wan i stap long ol narapela narapela ples bilong putim ol samting. Ol ESL displei long wanwan ples i soim oda bilong ol kit, hamas samting ol i nidim, na wok bilong pinisim wok. Integresen wantaim asembli dokumentesen i soim ol wok instraksen wantaim komponen aidentifikesen.

Vendor-managed inventory (VMI)ol program i save yusim ESL long serim 'visibility'. Taim ol saplaia i menesim ol 'inventory level' long ol ples bilong ol kastoma, ESL i ken soim 'replenishment status', ol de bilong ol 'shipment' i kam insait, na 'stock availability'. Dispela 'transparency' i sapotim ol wok bilong wokim ol samting insait long taim tasol we i nidim ol gutpela hap bilong wokim ol samting na i no gat bikpela mani long wokim ol samting.

ESL vs. Alternative Display Technologies NUPELA SEKSEN

ESL seleksen i no bilong makim tasol gutpela e-pepa panel. Em i long makim stretpela displei teknoloji bilong aplikesen.E-peparesis wantaimLCD sel displei, ol 'segment displays', na ol 'traditional paper labels-wanwan i gat ol narapela narapela pefomens mak, kos straksa, na ol gutpela hap bilong aplikesen. Dispela wok painimaut i givim teknikel as bilong ol disisen bilong makim teknoloji.

E-Pepa (EPD) Elektronik Shelf Labels

As tingting bilong wok: 'Electrophoretic particle migration' insait long 'microcapsule suspension' aninit long 'applied electric field'. Bistable-i lukautim piksa na i no gat pawa.

Ol strongpela samting: Zero pawa konsumsen taim em i no senis (trupela bistabiliti), gutpela lait bilong ples we i stap klostu, bikpela lukluk (170 digri +), pepa-lukluk we i wok gut wantaim ol stua, planti-yia bateri laip bilong ol koin sel, sanlait ridabiliti long ausait na hai- aplikesen.

Ol mak: Slo refresh (300-2000ms long kisim ful apdet), liklik kala inap (1-4 kala bilong ol komesel prodak, ful-kala i kamap), ol 'ghosting artifacts' we i nidim ful refresh long olgeta taim, kol tempereja pefomens i go daun, bikpela inisial yunit kos winim ol narapela LCD.

Kost straksa: Soim ol modul $3-15 bihainim sais na kala bilong en; olgeta ESL yunit wantaim kontrola, komunikesen, haus, na bateri $8-40; infrastraksa (ol 'gateways', 'management software') i save putim $0.50-2 long wanwan 'label' bilong ol 'deployment'.

Ol gutpela aplikesen: Prais-sentrik ritel lebol wantaim ol apdet we i no save kamap planti taim (ol stua, jenerel samting, famasi), ausait o hai-ambient-lait envairomen, ol diploimen we i putim longpela laip bilong bateri i go pas long spit bilong apdet, ol aplikesen we i nidim pepa-kain lukluk.

Ol LCD Shelf Displei

As tingting bilong wok: Likwid kristal lait modulesen wantaim LED beklait. I nidim pawa oltaim long kisim lait long baksait; soim stet i no stap gut sapos i no gat pawa.

Ol strongpela samting: Fast refresh (60Hz standet, i gutpela long vidio), ful kala inap wantaim planti milion kala, bikpela lait bilong pulim tingting-promosen, inap long soim vidio na animesen, bikpela teknoloji wantaim bikpela saplaia ekosistem.

Ol mak: Pawa i save yusim oltaim (3-15W bilong ol 'shelf-edge' displei), lait i no wok gut (i luk olsem i no gutpela long ol stua we i gat lait), 'viewing angle' i no inap (±60 digri pastaim long kala i senis), 'backlight' i no wok gut em i wanpela kain 'failure mode', i nidim pawa infrastraksa we i gat waya.

Kost straksa: Soim ol modul $15-50 bihainim sais; ful netwok shelf i soim $50-200; ol kos bilong instolesen i save winim kos bilong ol 'hardware' bikos ol i nidim pawa infrastraksa.

Ol gutpela aplikesen: Ol 'promotional end caps' we ol piksa i save pulim ai bilong ol manmeri, ol 'video-' inap long soim ol edvetaismen, ol 'promotional campaign' we i no gat planti taim, ol ples we i gat lait we i gat kontrol (insait bilong ol bikpela stua, ol stua long ples balus), ol aplikesen we ol pawa infrastraksa i stap pinis.

Segmen LCD Displei

As tingting bilong wok: Ol simpol likid kristal segmen (olsem ol kalkuleta displei) we ol dediket segmen draiva i save draivim. Pawa i liklik tru tasol i no inap long ol 'pre-set bilong ol leta.

Ol strongpela samting: Em i no gat bikpela pe ($0.50-2 long wan wan displei), em i no yusim planti pawa (ol 'microamps' bilong 'static display'), em i gat bikpela tempereja, em i isi long draivim ka, na em i gutpela tru long planti yia bilong yusim.

Ol mak: Ol 'fixed segment patterns' i save pasim ol samting we yu ken soim (planti taim ol namba na ol liklik leta tasol), nogat grafik inap, liklik sais opsen, lukluk i gat deit, wanwan leta i nidim wanpela 'segment pattern'.

Kost straksa: Soim ol modul aninit long $1 long volium; olgeta prais soim ol yunit $2-5; liklik kos bilong infrastraksa.

Ol gutpela aplikesen: Pure numerik prais displei we i no nidim konten fleksibiliti, ol bikpela kos-sensitiv diploimen, hai-volium aplikesen we i putim yunit ekonomiks i go pas long kapabiliti, ol hatpela envairomen diploimen we ol sofistiketed ilektroniks i save kamapim hevi bilong reliabiliti.

Ol pepa lebol (manuel)

As tingting bilong wok: Ol pepa lebol we ol i prinim na putim insait long ol plastik holda o pas stret long ol arere bilong ol sel. Ol wokman bilong stua i bin apdetim long han.

Ol strongpela samting: Kost bilong teknoloji i no antap tumas (i no gat wanpela samting bilong soim ol samting), i no gat mak bilong grafik fleksibiliti, nogat ol samting bilong elektronik i bagarap, nogat ol infrastraksa rikwaemen, wokflo we ol wokman bilong ritel i save gut long en.

Ol mak: Labor-intensive apdet proses (15-30 seken long wan wan lebol bilong ol wokman i gat save), planti asua i save kamap (ol i ting olsem 5-15% prais i no stret long ol stua), ol kos bilong ol samting na ol samting bilong prinim, liklik inap long senisim prais hariap, ol pipia bilong envairomen we i kam long ol lebol we ol i tromoi.

Kost straksa: Ol lain i holim lebol $0.10-0.50 wanwan; ol pepa lebol $0.01-0.05 wanwan; ol kos bilong wok na ol samting bilong wok i save winim kos bilong laipsaiklon bilong ESL insait long 2-4 yia bilong ol aplikesen we i save kamap planti taim.

Ol gutpela aplikesen: Ol liklik ritel operesen we pe bilong wokman i no bikpela tumas (ol stua we papa bilong en- i operetim), ol envairomen we i no gat planti apdet, ol ritel we i no gat as bilong putim mani long infrastraksa, ol aplikesen we i nidim ol narakain fisikel fomat we i no stap long ol ilektronik opsen.

Teknoloji Seleksen Fremwok

Ol mak bilong mekim disisen long makim 'display technology' i gat planti samting insait long en we ol i mas skelim bihainim ol 'aplication priorities':

Apdetim frikwensii gat bikpela strong long makim ol teknoloji. Ol aplikesen we i no gat planti apdet long olgeta wik i no save mekim ESL invesmen i stret; ol pepa lebol i stap ekonomik. Ol aplikesen we i gat ol apdet long olgeta de i save kamap long ESL breakeven insait long 2-3 yia. Ol aplikesen we i gat planti apdet long olgeta de i save sapotim ESL ekonomiks.

Konten kompleksitii save mekim wok bilong makim teknoloji. Pure numerik prais displei inap long yusim 'segment LCD' long liklik pe tru. Ol prais wantaim liklik rait (nem bilong ol prodak, prais bilong ol yunit) i stret long e-pepa ESL. Ol gutpela piksa o vidio i nidim LCD maski pawa kos i antap.

Ol kondisen bilong envairomenpasim ol opsen. Bikpela lait (ausait, windo, lait bilong stua) i helpim e-pepa long soim lait. Ol ples we i gat lait we i gat kontrol inap long yusim LCD gut. Ol bikpela hat tru (long aisbokis, ausait) i nidim stretpela mak bilong ol panel maski wanem kain teknoloji yu makim.

Pawa infrastraksa i stapplanti taim i save makim sapos em inap long kamap. Ol ples we i no gat pawa o we pawa bilong ran bai i gat bikpela pe tumas, ol i mas yusim bateri-pawa ESL. Ol ples we i gat pawa infrastraksa i stap pinis (antap long-ol lait seket) i ken tingim ol LCD opsen.

Total kos bilong onasip analisisi mas tingim:

Ol dispela namba i save senis tru bihainim ol lokol kos bilong ol wokman, ol apdet frikwensi, na skel bilong diploimen. Kalkulesen i save helpim ESL long ol apdet frikwensi antap long 1-2 taim long wik insait long ol divelop-ikonomi leba maket.

Ol 'Hybrid Deployment Strategies'

I no gat planti ritela i save yusim wanpela displei teknoloji long olgeta aplikesen. Ol 'hybrid' strateji i save makim teknoloji wantaim ol samting we ol i nidim insait long wanpela ritel envairomen:

E-pepa bilong prais, LCD bilong promoseni yusim ESL long putim ol prais long olgeta taim long stua taim em i putim ol LCD skrin long ol 'end caps', ol 'checkout' eria, na ol 'promotional hot spots' we 'video capability' na 'high brightness' i save pulim tingting bilong ol kastoma. Dispela rot i kisim ol gutpela samting bilong ESL long planti ol 'label' na tu i lukautim 'promotional flexibility' we i bikpela samting.

Segment LCD bilong prais, e-pepa bilong kisim infomeseni putim ol 'segment display' we i no gat bikpela pe bilong kisim namba tasol na yusim ol bikpela e-pepa displei bilong kisim ol ditel infomesen bilong prodak we ol samting i gat planti samting long en i mekim na ol i mas baim bikpela pe. Dispela rot i daunim kos bilong ol bikpela -volium besik lebol na tu i larim ol i soim gutpela infomesen we kastoma veliu i mekim invesmen i stret.

Tempereture-zone technology matchingi yusim standet ESL long ol ritel eria we i stap klostu taim em i yusim ol bikpela-temperature varien long ol friji zon na i ken makim ol strongpela segmen displei long ol frisa seksen we bikpela-temperature e-pepa pefomens i kamap liklik. Seleksen bilong teknoloji i bihainim ol samting bilong envairomen na i no bihainim ol wankain spesifikesen.

Skelim-infrastraksa we i streti ken yusim ESL wantaim ful netwok infrastraksa long ol bikpela-fomat stua taim yu putim ol standalone segmen displei o pepa lebol long ol liklik fomat stua we infrastraksa invesmen i no inap long gro long sait bilong ekonomi. Seleksen bilong teknoloji i tingim skel bilong diploimen wantaim ol teknikel rikwaemen.

Ol nupela teknoloji

Hai-Spid EPD Risets

Ol soim long laboratori i bin winim75Hz 'refresh rates'long e-pepa panel-i kam klostu long LCD teritori. Ol dispela demo long ol indastri konprens i gutpela tru, tasol wok bilong kamapim ol samting i stap longwe yet.

Ol bikpela teknoloji we i helpim emol 'liquid crystal' aditivdispela i save putim wara bilong 'electrophoretic' wantaim ol marasin we i save kirapim 'backflow effects'. Ol risets pepa i ripotim 2.8× spit impruvmen na long wankain taim daunim 'driving voltage' long 50%.Ol liklik 'film front-plane laminatesdaunim longwe bilong ol liklik hap samting i go long narapela hap.Ol nupela 'nanoparticle' fomulasenstretim ol 'surface charge characteristics' na daunim 'hydrodynamic radius'. Namasin lening-optimized waveform jenereseni save senis long taim tru bilong soim ol samting i kamap long stet na envairomen.

Ol dispela teknoloji i stap yet long divelopmen. Em i no gutpela long makim ol ESL prodak bilong prodaksen bihainim ol risal bilong laboratori.

Kala E-Pepa Evolusen

E Ink Galeri 3teknoloji i soim we kala EPD i go long en. Blak/wait 'refresh' i go daun long350ms, i go daun long 2000ms long ol jeneresen bipo. Kala mode i kamap hariap500ms. Standet kala mod i ran750-1000ms. Gutpela kwaliti kala mode i nidim yet1500ms.

Kala EPD i wok long senis long "i no inap long yusim" i go long "i inap long yusim" long sampela aplikesen. Tingim olsem ol bai wok long kamap gutpela moa, tasol 'monocrome' bai holim strong spit na pawa bilong en oltaim oltaim bikos long ol bikpela samting bilong 'particle physics' we i no wankain.

Pefomens Spesifikasen bilong Sistem Disain

Minimum Viable Specifications

Long ol jeneral ritel sel lebol, ol dispela namba i makim plua:

Taim bilong mekim nupelai mas winim 2000ms o gutpela moa long global mode, 500ms o gutpela moa long hap.Kontras resioi mas winim 8:1.Ansai mas kamap long 100 DPI.Angle bilong lukluki mas span 170 digri o moa.Tempereja bilong woki mas karamapim 0 digri i go inap 40 digri.Laip bilong baterii mas winim 5-pela yia long 2-pela apdet long wan wan de.

Ol spesifikesen we i kamap gutpela moa

Long ol aplikesen we i gat planti wok-ol apdet planti taim, kol stoa, promosen konten-ol spesifikasen i mas tait:

Taim bilong mekim nupelai mas winim 1000ms long global, 300ms long hap.Kontras resioi mas winim 12:1.Ansai mas kamap long 120 DPI o antap moa.Kala inap(3-4 kala) i kamap bikpela samting.Tempereja bilong woki mas stap long -25 digri i go inap 50 digri.Laip bilong baterii mas winim 3-pela yia long 4-pela apdet long wan wan de.

Spesifikasen Validesen

Ol spesifikesen bilong ol vendor i mas stap aninit long ol gutpela kondisen. Dispela i no opsenel-i gat bikpela spes namel long ol datasit klem na prodaksen pefomens i bin kamap.

Testim taim bilong 'refresh' long 'minimum' na 'maximum' operesen tempereja, na i no long rum tempereja tasol. Konfemim 'contrast ratio' aninit long lait bilong stua, na i no lait bilong laboratori. Stretim ol 'battery life projections' wantaim 'intended update frequency' na 'content type-ol 'vendor projections' i save tingim ol gutpela -kes senario. Sekim 'system-level apdet 'latency' wantaim 'target label count' bilong meksua olsem 'network architecture' i wok gut.

Mekim Teknoloji wantaim Aplikesen

Seleksen bilong teknoloji bilong 'electronic shelf label' i save kamap long makim ol samting we ol i nidim. Fisiks bilong ol 'electrophoretic' displei i save kamapim ol strongpela mak-refresh reit, temperaja sensitiviti, ghosting behavior-we nogat amaun bilong optimaisesen bai abrusim. Sapos yu kliagut long ol dispela mak, dispela i mekim na yu inap long wokim gutpela sistem na makim gutpela teknoloji.

Long ol wok we ol hevi i stret long aplikesen-moderate apdet frikwensi, ambient tempereja operesen, prais-fokas konten-ESL i givim gutpela veliu long rot bilong rausim ol wokman, stretim prais, na operesenel fleksibiliti. Long ol aplikesen we i wok long sakim ol ESL limitesen-ol bikpela-frikwensi apdet, ol bikpela tempereja, ol gutpela midia konten-ol narapela teknoloji o ol 'hybrid' rot i ken kamap gutpela moa.

Teknoloji i wok long kamap gutpela moa. Ol 'refresh rate' i go antap isi isi. Kala kapasiti i go bikpela. Ol mak bilong hat i go bikpela. Tasol as tingting bilong fisiks i stap yet. Sapos yu laik putim ESL gut, yu mas wok insait long ol dispela hevi, na yu no ken giaman olsem ol i no stap.
